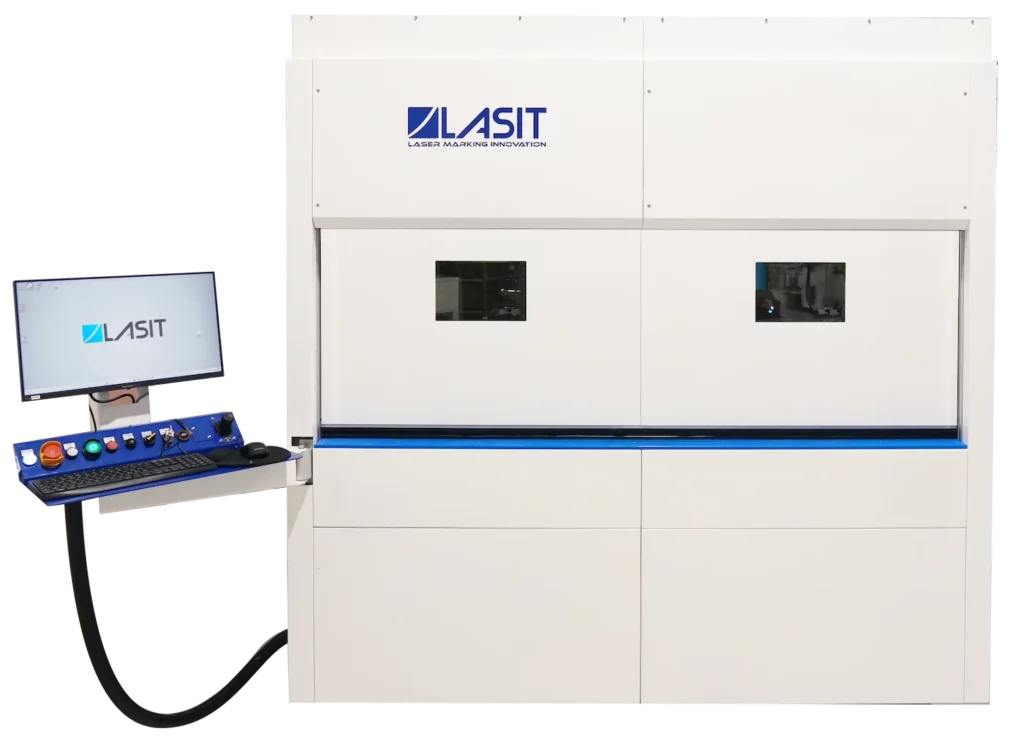

The LASIT Universal is a robust, three‑axis laser marking machine built from welded, precision‑machined steel to handle heavy loads up to 250 kg with smooth, accurate motion. It covers a generous marking area up to approximately 1000 × 500 × 500 mm, perfect for large components or pallets filled with small parts. Plus, it’s highly versatile, supporting all laser types and optional accessories like vision systems, rotary or W‑axis heads, barcode readers, and vacuum systems
The Compactmark G8 can be equipped with a wide variety of accessories. For example, it can provide W-axis for marking cylindrical components, 3-axis heads for marking non-planar surfaces as well as vision systems for marking centering and reading 2D codes.
The CompactMark G8 allows the marking of an area of 700x450mm (with focal length FFL160), thanks to the movement of the X-axis and the Y-axis working plane. This marker is ideal both for engraving on a single part and on a pallet with hundreds of small parts, always maintaining perfect centring.
The frame of the CompactMark G8 is completely made of stretched and machined welded steel. After thermal stress relief, the structure is finished to create support shelves for screws and slides. This allows greater acceleration of the axles without vibration, and guarantees stability and strength.
Height
2300mm
Width
1200mm
Depth
1410mm
Laser
Fiber Laser, MOPA Laser, Picosecond Laser, Green Laser, UV Laser
Work plan
800X450
Door type
Pneumatic
Axle strokes
600x400x400
Available focal lengths
FFL160 FFL254 FFL330
Maximum marking area
700x500 mm (FFL160)
Maximum weight on table
150 Kg
